Teknik Özellikler
BESLEME
Besleme Voltajı : 24/48Vdc
- Voltajı Aralığı 18-60Vdc
: 110/220Vdc - Voltajı Aralığı 88-242Vdc
Besleme Gücü : 10w
GİRİŞLER
Giriş Sayısı : 36
Giriş Tipi : Optik İzoleli, Varistör
Korumalı, Ortak dönüş uçlu transiyent filtre
Giriş Voltajı :
24/48Vdc - Voltajı Aralığı 18-60Vdc
:
110/220Vdc - Voltajı Aralığı 88-242Vdc
Giriş Akımı : 24/48Vdc Max. 5 mA -
110/220Vdc Max. 5 mA ( Kanal
Başına )
Giriş Direnci (min) : 24/48Vdc 15 kΩ -
110/220Vdc 25 kΩ
Giriş Eşik Voltajı : 24/48Vdc 12V ± %20 - 110/220Vdc
65 V ± %20
Transiyent Voltaj : Ortak Mod: 1kV – Seri Mod: 2kV
Tepki Süresi : Default :5 ms - Programlanabilir 3-250ms
Bırakma Süresi : Default :20 ms - Programlanabilir 3-250ms
Harici Buton Bağlantısı :
Var. Reset – Horn – Test – Ack
ÇIKIŞLAR
Kontak Çıkışları : 48Vdc-1A / 250Vdc-0.2A
Korna Rölesi : 1-Form-A kuru kontak röle
(SPST) (NO)
Arıza Rölesi : 1-Form-C kuru kontak röle
(SPDT) (NO/NC)
HABERLEŞME
Haberleşme Protokolü : Modbus RTU 19200,8n1
KULLANICI ARAYÜZÜ
Butonlar :
Reset – Horn – Test – Ack

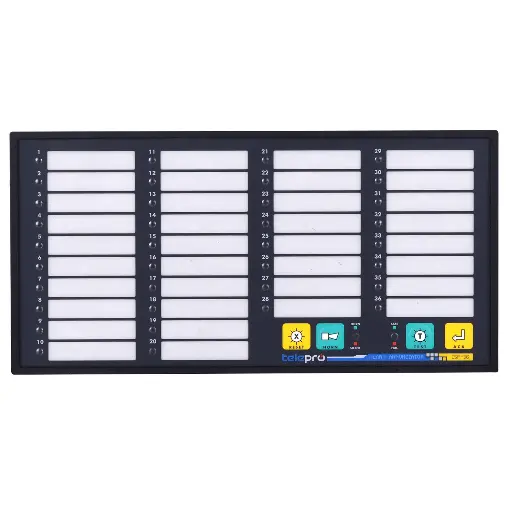

Ön Panel :
2 Katmanlı, Kabartmalı, Cepli Membran
Pencere Ölçüleri :
51,5 x 11 mm
Işıklı Uyarı : RGB LED (Kırmızı-Yeşil-Sarı-Mavi-Mor-Turkuaz-Beyaz )
Sesli Uyarı : Dahili 23mm Buzzer 75 dbA
Korna – Zil Konfig. : Ön
Panel Butonları ile
KASA
Kasa Tipi :
Panel tipi
Ölçü(XxYxZ) :
288x144x82,5 mm
Pano Bağlantısı :
Geçmeli Vidalı Tip
Koruma Sınıfı :
IP51 (ön panel tarafında)
Ağırlık :
1200 gr
BAĞLANTI
Bağlantı Tipi :
Vidalı, Geçmeli Tip Klemens
Kablo Kesiti :
12 AWG (2.5 mm)
ÇEVRE ÖZELLİKLERİ
Çalışma sıcaklığı :
-20 C – +55 C
Depolama Sıcaklığı :
-25 C – +80 C
Nem :
0-95% RH
AMBALAJ
Ambalaj Tipi :
Karton Kutu
Ambalaj Ölçüleri : 303x150x105
mm (ExBxD)
Ağırlık :
1310 gr
